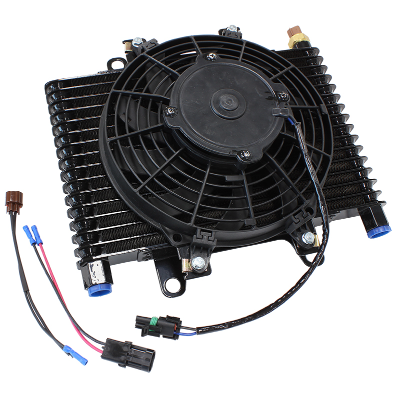

AF72-6001 - Competition Oil & Transmission Cooler -10 ORB, 13-1/2" x 9" x 3-1/2", with Fan & Switch

Aeroflow's engine and transmission competition oil coolers feature -10ORB female fittings, thermostat, wiring plug kit and a high quality electric fan. It accepts engine oil, transmission and power steering applications and has been pressure tested to over 200psi.

The M18 x 1.50mm thermal switch included in the top of the oil cooler activates the fan at 175°F/79.5°C. The cooler also features a fin and plate construction. The dimensions are 13-1/2"(342mm) x 9"(228mm).

The 9-1/2" (241mm) electric fan can be reversed for mounting either side of the heat exchanger. They are boxed in the pusher configuration. To change this to a puller fan simply unscrew 10mm nut (reverse (left hand) thread) and turn fan blade over keeping in mind polarity BLUE - Positive BLACK - Negative.
