AF72-6050 - Oil Cooler Kit - 3/8" Barb
AF72-6050 - Oil Cooler Kit - 3/8" Barb
SKU: AF72-6050
BRAND: Aeroflow Performance
Oil Cooler Kit
3/8" Barb, 11" x 6" x 1-1/2"
The Aeroflow Performance transmission oil cooler is designed to cool the automatic transmission oil during sustained high-speed driving, pulling heavy loads, racing or any other torque converter stress. The cooler will guard against excessive overheating, but will not overcool the transmission in winter weather.
This product is designed for universal applications. It is anodised in a black finish. Both inlet and outlet ports are male 3/8" ( 9.52mm ) barbs.
This oil cooler is a stack plate cooler and features 22 rows that are fully brazed on all contact surfaces inside and outside. Furthermore, they have also had a brazed seam that can withstand vibrations and pulsations in all types of applications. This Aeroflow Performance cooler will help protect your transmission and transmission oil from overheating but it cannot correct a faulty or worn transmission.

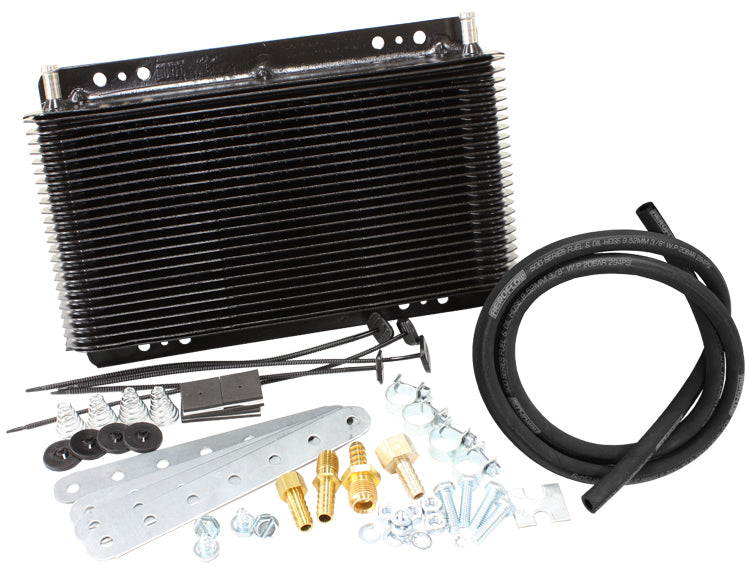

This Kit inlcudes the following:
1 x Oil Cooler
1 x 1.6 metre length of 500 Series Aeroflow Performance Push Lock Hose
4 x EFI hose clamps
4 x Mounting rods
4 x Mounting rod locking tabs
8 x Adhesive cushion pads
4 x Self tappet mounting screws with locking washers
4 x 1/4" UNC mounting bolts with spring washers, flat washers and nuts
4 x Universal mounting brackets (Length = 175mm, Width = 23mm)
1 x Brass 5/8"-18 female invented seat to 3/8" barb
1 x Brass 5/8"-18 male invented seat to 3/8" barb
1 x Brass 1/2"-20 female invented seat to 3/8" barb
1 x Brass 1/2"-20 male invented seat to 3/8" barb
1 x Hose size guide tool
