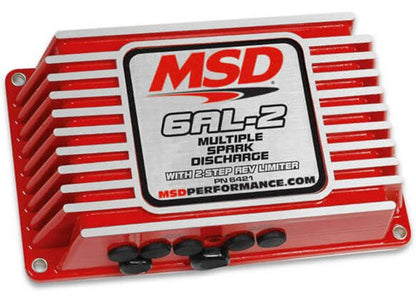

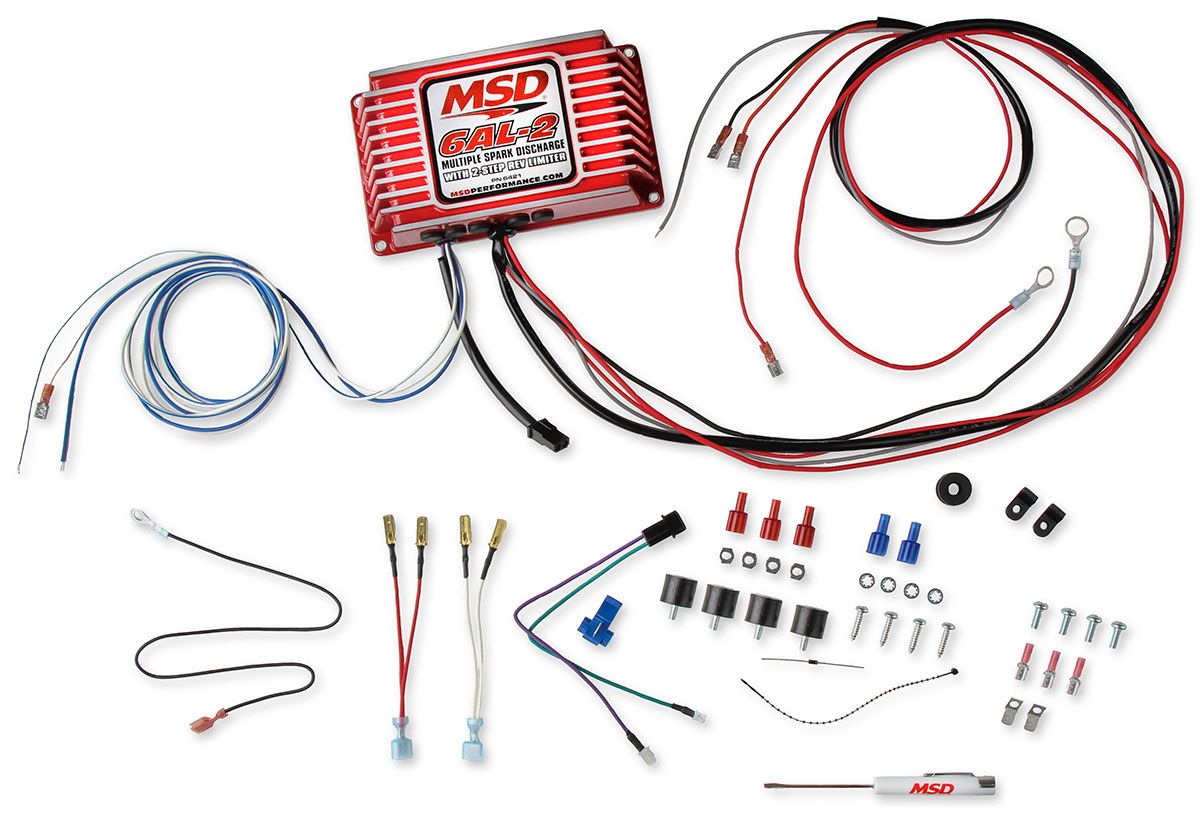

MSD6421 - 6AL-2 Ignition Control - Red Digital Capacitive Discharge with Rev-Limiter
MSD6421 - 6AL-2 Ignition Control - Red Digital Capacitive Discharge with Rev-Limiter
MSD6421
6AL-2 Ignition Control - Red
Digital Capacitive Discharge with Rev-Limiter
- All new housing, digital circuits and performance
- Built-in 2-Step rev control with rotary dials
- Higher output with up to 135mJ and 535 volts
- Accepts Hall-effect, points and mag pickup triggers
- Managed by an efficient digital control
MSD is excited to announce the next generation of 6-Series ignition controls - the 6AL-2! The all new ignition control combines a new housing, new digital controls and more power in a sleek package. Inside the new cast aluminium housing you'll find an advanced micro-controller that manages the timing and rpm of the ignition. The spark output of the new box has been turned up to 535 volts of primary voltage with spark energy reaching up to 135millijoules! The multiple sparks of the 6AL-2 burn in the cylinder for 20 degrees of crankshaft rotation to ensure complete combustion. Two more great features are the rev limits! There are two rev l imiters; one for high er rev protection and another you can activate off a clutch or transbrake to set a launch limit. This feature will help your car blast off the starting line! Adjustments are made via four rotary dials for 100 rpm increment control! The all new capacitive discharge ignition will easily connect to nearly any 12-volt negative ground distributor system.
Operating Specifications:
Spark Energy : 135 millijoules/Spark
Primary Voltage: 535 Volts
Secondary Voltage: 45,000 Volts
Spark Series Duration: 20 Degrees Crankshaft Rotation
RPM Range : 12,500 RPM with 14.4 Volts
Voltage Required : 12 - 18 Volts, Negative Ground
Current Draw: .7 Amp per 1,000 RPM
Weight and Size: 3 lbs., 7"L x 4"W x 2"H
Tested with Blaster HVC II Coil, PN MSD8253
